What is Xonic 100?

Xonic 100L measure transit-time of flow and use DSP (digital signal processing) technology to analyze ultrasonic signals. This DSP technology can remove any noise from pipe and electronics. Also, Xonic 100L use Cross Correlation and FFT (Fast Fourier Transform) technology to make very clean ultrasonic signals.

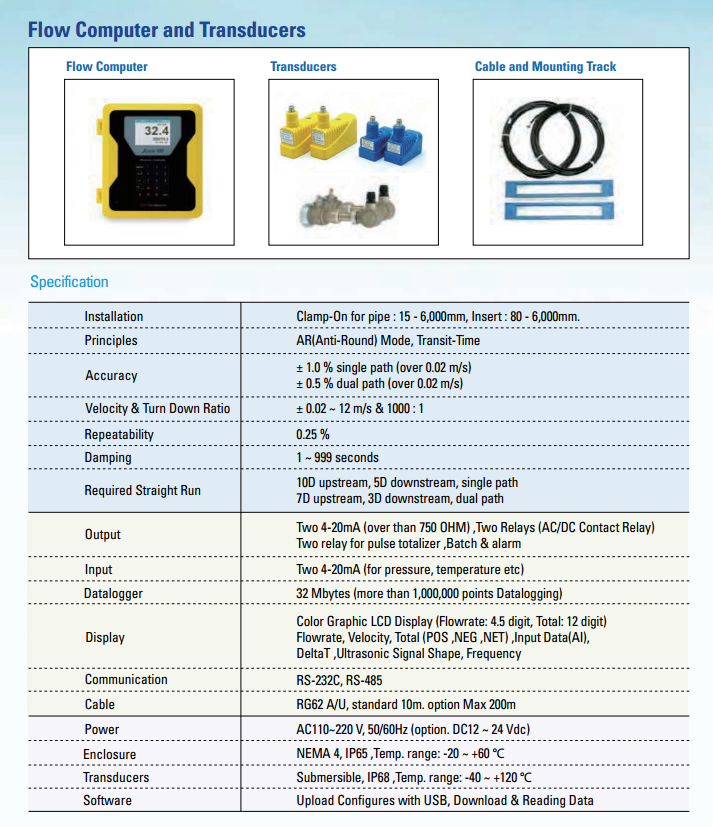

Measuring pipe is from 15 ~ 6,000mm, and velocity range is from 0.02~ 12 m/sec. Xonic 100L can measure very slow flow, so very suitable for block flow (leak) monitoring system. Also, it has two 4-20mA inputs,so user can use this inputs to receive pressure and temperature data without PLC.

What use Xonic 100?

Clamp-On Technology make installation very simple. User just attach clamp-on transducers on pipes or insertion with hottap valve transducers drill to pipe. Do not need stop water supply for installation and after service.

Xonic100L can work with many kinds of pipe, such as: Steel, Stainless (SUS), Ductile Iron, Copper, A/C, PVC, PE, PB, FRP or others if know sound velocity.

Turn-down ratio of Xonic100L is more than 1000:1. Xonic 100L is the best flowmeter to check minimum flow during mid-nights. The Flow in mid-night is down to 1m3/ hr for 100 mm pipe and Xonic 100L can keep the accuracy.

Xonic 100L use Cross Correlation technology. The technology is able to remove most noises outside the pipe. Also, Xonic 100L can measure liquids contain heavy air and slurry.

Xonic 100L has large color graphic LCD. It allows user to read the flow, total, analog input data (pressure, level, etc) and the ultrasonic signal diagrem. So user can check how flowmeter works in field without oscilloscope as diagnostic functions.

Xonic 100L is dual beam or dual path is basic model. User can use as single channel flowmeter with one pair transducers, and dual channel or dual path flowmeters with two pair transducers.
